Confluence OAuth 2.0 인증하기

참고

2021/11/24 기준으로 위의 OAuth 2.0 방식으로 얻은 Access Token으로는

The Confluence Cloud REST API에 나와있는 API를 사용할 수 없다 (401 Error 발생함)

OAuth 2.0 (3LO) apps의 3.2 Construct the request URL부분을 참고하여 URL을 적절히 수정하여 사용해야 한다.

Oauth Token 얻기

Oauth Token을 얻기 위해서는 아래와 같은 절차를 거친다.



1. Confluence Oauth2(3LO) 인증용 App을 만든다.
2. App에 필요한 권한들을 부여한다.
3. Callback URL을 설정한다.
4. Authorization Code 얻기
5. Authorization Code로 Access Token 얻기
6. (필요시) Refresh Access Token 얻기

Confluence Oauth2(3LO) 인증용 App 만들기

Confluence MyApp에서 인증용 앱을 만들면 된다. 이때 'OAuth 2.0 intergration'으로 만들면 된다.

App에 필요한 권한 부여하기

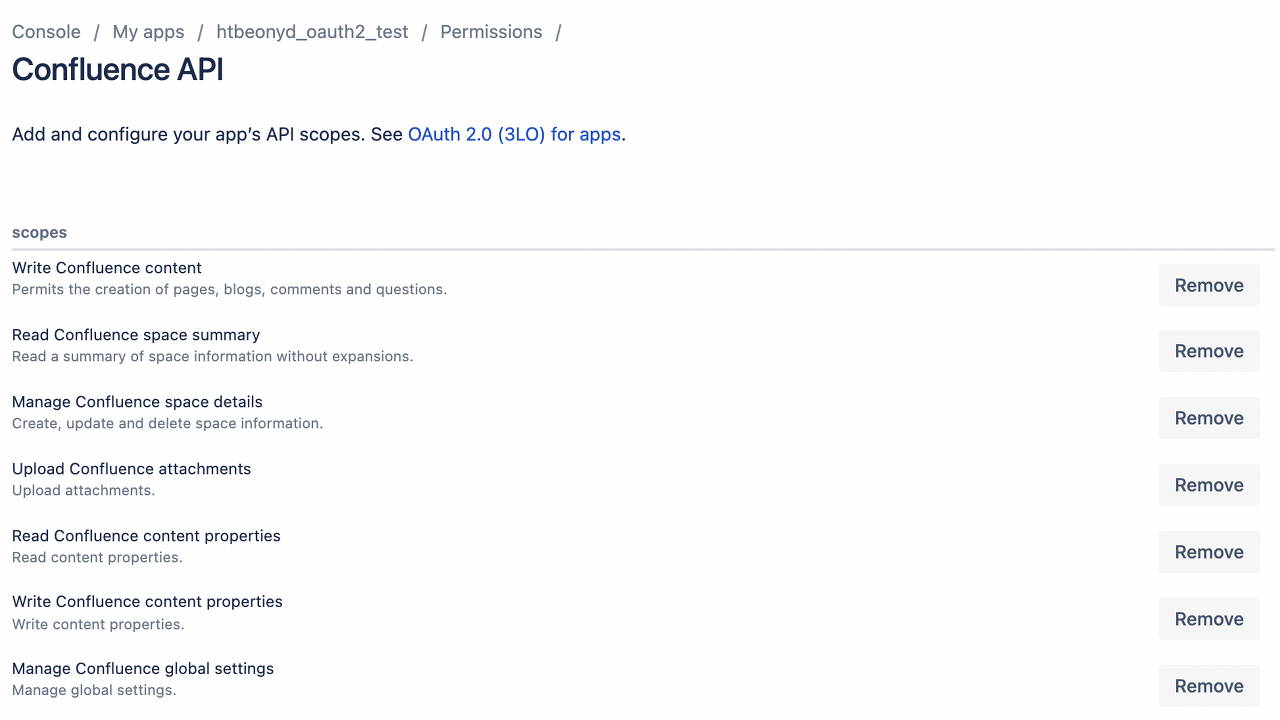

App 설정에서 'Permission > Confluence API'에 들어가 필요한 권한을 부여한다.

Callback URL 설정하기

'Authorization' 메뉴에 들어가면 Callback URL을 설정할 수 있다.

설정하고 나면 하단에 인증을 위한 URL이 자동으로 생성된다.

참고로 state값은 아무 값이나 넣어도 되지만, Refresh Token이 필요하다면 ‘scope’에 ‘offline_access’를 포함시켜야 한다.

Authorization Code 얻기

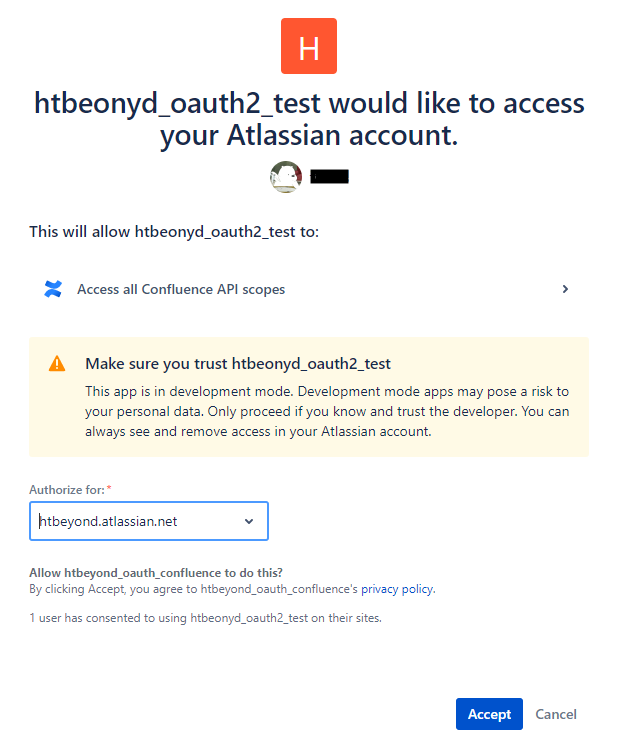

위의 과정에서 생성된 authorization URL를 브라우저에서 요청하면 아래와 같은 화면이 나온다.

Authorize for에 알맞은 confluence 선택하고 Accept 하면, 브라우저 URL에서 Authorization code를 얻을 수 있다.

http://localhost:8080/?code=cpYWEbZqZkX-iW-n&state=reservation

Authorization Code로 Access Token 얻기

Postman을 통해 아래처럼 요청하면 된다.

client_id, client_secret은 Myapps > Settings에서 얻을 수 있다.

• URL : [POST] https://auth.atlassian.com/oauth/token
• Request Body


  {
      "grant_type": "authorization_code",
      "client_id": "YOUR_CLIENT_ID",
      "client_secret": "YOUR_CLIENT_SECRET",
      "code": "YOUR_AUTHORIZATION_CODE",
      "redirect_uri": "https://YOUR_APP_CALLBACK_URL"
  }

• Request Body Example


  {
      "grant_type": "authorization_code",
      "client_id": "O1MvP2WwWeEqgrxn15JRdbFemWGtUoNn",
      "client_secret": "LgYejIrZKKAJEaYfDmPzGnJkC7A1KOK4D84Uh3sX_J_ZWywCHBf4K6cgZ9Fojpt-",
      "code": "BdjeQ3bffaBp0-mP", //Authorization code
      "redirect_uri": "http://localhost:8080"
  }

• Response Body Example


  {
      "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6Ik16bERNemsxTVRoRlFVRTJRa0ZGT0VGRk9URkJOREJDTVRRek5EZzJSRVpDT1VKRFJrVXdNZyJ9.eyJodHRwczovL2F0bGFzc2lhbi5jb20vb2F1dGhDbGllbnRJZCI6Ik8xTXZQMld3V2VFcWdyeG4xNUpSZGJGZW1XR3RVb05uIiwiaHR0cHM6Ly9hdGxhc3NpYW4uY29tL2VtYWlsRG9tYWluIjoiaHRiZXlvbmQuY29tIiwiaHR0cHM6Ly9hdGxhc3NpYW4uY29tL3N5c3RlbUFjY291bnRJZCI6IjYxOTc1ZWY0ZWJjZTQ3MDA2N2Q1OGIzOSIsImh0dHBzOi8vYXRsYXNzaWFuLmNvbS9zeXN0ZW1BY2NvdW50RW1haWxEb21haW4iOiJjb25uZWN0LmF0bGFzc2lhbi5jb20iLCJodHRwczovL2F0bGFzc2lhbi5jb20vdmVyaWZpZWQiOnRydWUsImh0dHBzOi8vYXRsYXNzaWFuLmNvbS9maXJzdFBhcnR5IjpmYWxzZSwiaHR0cHM6Ly9hdGxhc3NpYW4uY29tLzNsbyI6dHJ1ZSwiaXNzIjoiaHR0cHM6Ly9hdGxhc3NpYW4tYWNjb3VudC1wcm9kLnB1czIuYXV0aDAuY29tLyIsInN1YiI6ImF1dGgwfDYxMzA0ZDlhNGE5OGRhMDA2OWQ3NzNiNCIsImF1ZCI6ImFwaS5hdGxhc3NpYW4uY29tIiwiaWF0IjoxNjM3NzI4MDIxLCJleHAiOjE2Mzc3MzE2MjEsImF6cCI6Ik8xTXZQMld3V2VFcWdyeG4xNUpSZGJGZW1XR3RVb05uIiwic2NvcGUiOiJtYW5hZ2U6Y29uZmx1ZW5jZS1jb25maWd1cmF0aW9uIHNlYXJjaDpjb25mbHVlbmNlIHdyaXRlOmNvbmZsdWVuY2UtcHJvcHMgcmVhZDpjb25mbHVlbmNlLXByb3BzIHdyaXRlOmNvbmZsdWVuY2UtZmlsZSB3cml0ZTpjb25mbHVlbmNlLXNwYWNlIHJlYWQ6Y29uZmx1ZW5jZS1zcGFjZS5zdW1tYXJ5IHdyaXRlOmNvbmZsdWVuY2UtY29udGVudCByZWFkOmNvbmZsdWVuY2UtY29udGVudC5zdW1tYXJ5IHJlYWQ6Y29uZmx1ZW5jZS1jb250ZW50LmFsbCByZWFkOmNvbmZsdWVuY2UtZ3JvdXBzIHdyaXRlOmNvbmZsdWVuY2UtZ3JvdXBzIHJlYWQ6Y29uZmx1ZW5jZS11c2VyIHJlYWQ6Y29uZmx1ZW5jZS1jb250ZW50LnBlcm1pc3Npb24gcmVhZG9ubHk6Y29udGVudC5hdHRhY2htZW50OmNvbmZsdWVuY2Ugb2ZmbGluZV9hY2Nlc3MifQ.fHBw-UkEqPNNDTfNzu5aqjjjaFVGzE6ndELeQVkW0orBHTjAi9zhHlQM2jVYbqp-ZrXiG7tGOv2b8iV7-jIJZox7AzSQLZK4HRNrFQ8W8qxh3WnHGcRZtGnYalwhW4MFT3qgOJ_Jr-RPR9WH6XpOwEeVj-uvy7s7C446uSCl_NdAHEUlx8VnF6OZBVx6C_AlcJT1lwPiteUEq0YYf-xw7oH-rCVcsuzVhWrmacR-T5YjVftI-U6IyAgtAIxXk2-869WbnPpNR_b-0M3ESrQo3AAnSVcmRS-Xomu0jybUcMuq6MIHv2r4shwKTVxtcq6iBwDZRiPrrex25MEvLE1Q-A",
      "refresh_token": "v1.MQFdtSM-SJhbBDfX-sdnBeIyAnkwKgl5fYby7-wzp46OPtIr880goHcXWaRS9qLjcrQ6dgu5KPDU_uaTBTxJkyc",
      "scope": "manage:confluence-configuration search:confluence write:confluence-props read:confluence-props write:confluence-file write:confluence-space read:confluence-space.summary write:confluence-content read:confluence-content.summary read:confluence-content.all read:confluence-groups write:confluence-groups read:confluence-user read:confluence-content.permission readonly:content.attachment:confluence offline_access",
      "expires_in": 3600,
      "token_type": "Bearer"
  }​



위의 'access_token'이 Oauth 인증의 결과물이다.

Refresh Access Token

Access Token은 약 1시간 정도의 수명을 지닌다. Access Token이 만료된 경우 새로운 Access Token을 받아야 한다.

• URL : [POST] https://auth.atlassian.com/oauth/token
• Request Body


  {
      "grant_type": "refresh_token",
      "client_id": "YOUR_CLIENT_ID",
      "client_secret": "YOUR_CLIENT_SECRET",
      "refresh_token": "YOUR_REFRESH_TOKEN"
  }​

• Request Body Example


  {
      "grant_type": "refresh_token",
      "client_id": "O1MvP2WwWeEqgrxn15JRdbFemWGtUoNn",
      "client_secret": "LgYejIrZKKAJEaYfDmPzGnJkC7A1KOK4D84Uh3sX_J_ZWywCHBf4K6cgZ9Fojpt-",
      "refresh_token": "v1.MgFdtSM-SJhbBDfX-sdnBeIMQKB9qx-cUGELoWqLt7lGOvy8zji5KDPz5PkGjRxDUXoIqPxx3sOZDiYiWCETrHo"
  }​

• Response Body Example


  {
      "access_token": "eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCIsImtpZCI6Ik16bERNemsxTVRoRlFVRTJRa0ZGT0VGRk9URkJOREJDTVRRek5EZzJSRVpDT1VKRFJrVXdNZyJ9.eyJodHRwczovL2F0bGFzc2lhbi5jb20vb2F1dGhDbGllbnRJZCI6Ik8xTXZQMld3V2VFcWdyeG4xNUpSZGJGZW1XR3RVb05uIiwiaHR0cHM6Ly9hdGxhc3NpYW4uY29tL2VtYWlsRG9tYWluIjoiaHRiZXlvbmQuY29tIiwiaHR0cHM6Ly9hdGxhc3NpYW4uY29tL3N5c3RlbUFjY291bnRJZCI6IjYxOTc1ZWY0ZWJjZTQ3MDA2N2Q1OGIzOSIsImh0dHBzOi8vYXRsYXNzaWFuLmNvbS9zeXN0ZW1BY2NvdW50RW1haWxEb21haW4iOiJjb25uZWN0LmF0bGFzc2lhbi5jb20iLCJodHRwczovL2F0bGFzc2lhbi5jb20vdmVyaWZpZWQiOnRydWUsImh0dHBzOi8vYXRsYXNzaWFuLmNvbS9maXJzdFBhcnR5IjpmYWxzZSwiaHR0cHM6Ly9hdGxhc3NpYW4uY29tLzNsbyI6dHJ1ZSwiaXNzIjoiaHR0cHM6Ly9hdGxhc3NpYW4tYWNjb3VudC1wcm9kLnB1czIuYXV0aDAuY29tLyIsInN1YiI6ImF1dGgwfDYxMzA0ZDlhNGE5OGRhMDA2OWQ3NzNiNCIsImF1ZCI6ImFwaS5hdGxhc3NpYW4uY29tIiwiaWF0IjoxNjM3NzM1NTQ5LCJleHAiOjE2Mzc3MzkxNDksImF6cCI6Ik8xTXZQMld3V2VFcWdyeG4xNUpSZGJGZW1XR3RVb05uIiwic2NvcGUiOiJtYW5hZ2U6Y29uZmx1ZW5jZS1jb25maWd1cmF0aW9uIHNlYXJjaDpjb25mbHVlbmNlIHdyaXRlOmNvbmZsdWVuY2UtcHJvcHMgcmVhZDpjb25mbHVlbmNlLXByb3BzIHdyaXRlOmNvbmZsdWVuY2UtZmlsZSB3cml0ZTpjb25mbHVlbmNlLXNwYWNlIHJlYWQ6Y29uZmx1ZW5jZS1zcGFjZS5zdW1tYXJ5IHdyaXRlOmNvbmZsdWVuY2UtY29udGVudCByZWFkOmNvbmZsdWVuY2UtY29udGVudC5zdW1tYXJ5IHJlYWQ6Y29uZmx1ZW5jZS1jb250ZW50LmFsbCByZWFkOmNvbmZsdWVuY2UtZ3JvdXBzIHdyaXRlOmNvbmZsdWVuY2UtZ3JvdXBzIHJlYWQ6Y29uZmx1ZW5jZS11c2VyIHJlYWQ6Y29uZmx1ZW5jZS1jb250ZW50LnBlcm1pc3Npb24gcmVhZG9ubHk6Y29udGVudC5hdHRhY2htZW50OmNvbmZsdWVuY2Ugb2ZmbGluZV9hY2Nlc3MifQ.zfMsw-Z0BqH9zBVxkHWET_EV0xpriMwzf4gbE7RHVLwtdEMg-FxpdpTXy2Fot2xu1hh-KtmZkQ9McCOJfZORtggTD7pYRwdFutSaA1nzdgNHJg7IXucp5YeNh3m0x0amsvYTK6f7YUslJ4_Nm4-Te6G2J1_LrP-KTC0w2bEsloSptNc-4rTbv1WulvBXwtu_Jn7fmJrJwdWZvAVvp2YdycD1TRw2lzy7dKr32XZpphjn2RMN5-4-MHbaGOFnGvXT8lowWa4WVFBHRmSQxezQDkv0vwSlSACw-rLq-Z1TkNYOfvXr0Y8KjeLTuxRTxM59tNrtwFv8kJhEyBG4hsbqyg",
      "refresh_token": "v1.MwFdtSM-SJhbBDfX-sdnBeKIB-U1eyCUMFQv1vsQpFT44Vz1t79kSmg910SEaa-I3Lc9_4RCRJYD6f15XFP7ojU",
      "scope": "manage:confluence-configuration search:confluence write:confluence-props read:confluence-props write:confluence-file write:confluence-space read:confluence-space.summary write:confluence-content read:confluence-content.summary read:confluence-content.all read:confluence-groups write:confluence-groups read:confluence-user read:confluence-content.permission readonly:content.attachment:confluence offline_access",
      "expires_in": 3600,
      "token_type": "Bearer"
  }​

Cloud Id 얻기

Cloud REST API를 사용하기 위해서는 Confluence의 Cloud Id를 알아야 한다.

위에서 얻은 access_token과 함께 아래 요청을 하면 알 수 있다.

• URL : [GET] https://api.atlassian.com/oauth/token/accessible-resources
• Response Body Example


  [
      {
          "id": "dd41eeba-d615-4e8c-9f41-2c4c467b2249",
          "url": "https://htbeyond.atlassian.net",
          "name": "htbeyond",
          "scopes": [
              "read:confluence-space.summary",
              "write:confluence-content",
              "read:confluence-content.summary",
              "read:confluence-content.all",
          ],
          "avatarUrl": "https://site-admin-avatar-cdn.prod.public.atl-paas.net/avatars/240/star.png"
      }
  ]​

응답 중 id의 값이 Cloud Id이다.
